Erkopress 240 Thermoforming Machine
Rs. 1,750,000.00
/
Shipping calculated at checkout.
Description

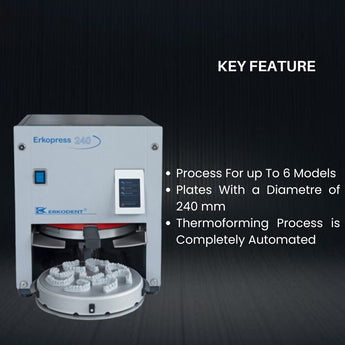

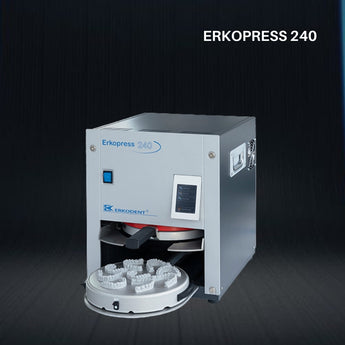

Erkodent Erkopress 240 Thermoforming Machine
- Pressure forming device with automated thermoforming process for up to 6 models with base and for up to 9 models without base, to connect with the existing compressed air system.
-
The unit works with an overpressure of up to 4,5 bar. It thus meets the desire of many users to thermoform 3d print models with overpressure.
Usage
Only thermoforming plates with a diametre of 240 mm can be processed. The thermoforming process is completely automated, the available plates are stored in the program and can be called up in the display with the respective parameters.
Technical Specification
Dimensions
Height 40 / Width 34,5 / Depth 59 cm
Weight
47 Kg
Operating Voltage
~220 - 240 (100, 110 - 120) volt, 50 - 60 hertz
Wattage
Max. 1100 watt
Working Pressure
4,5 bar, required mains system pressure > 6 bar
Noise Level
< 80 dB(A)
