Form Wash 2.0
Description

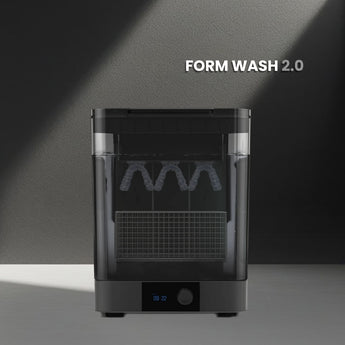

Form Wash 2.0

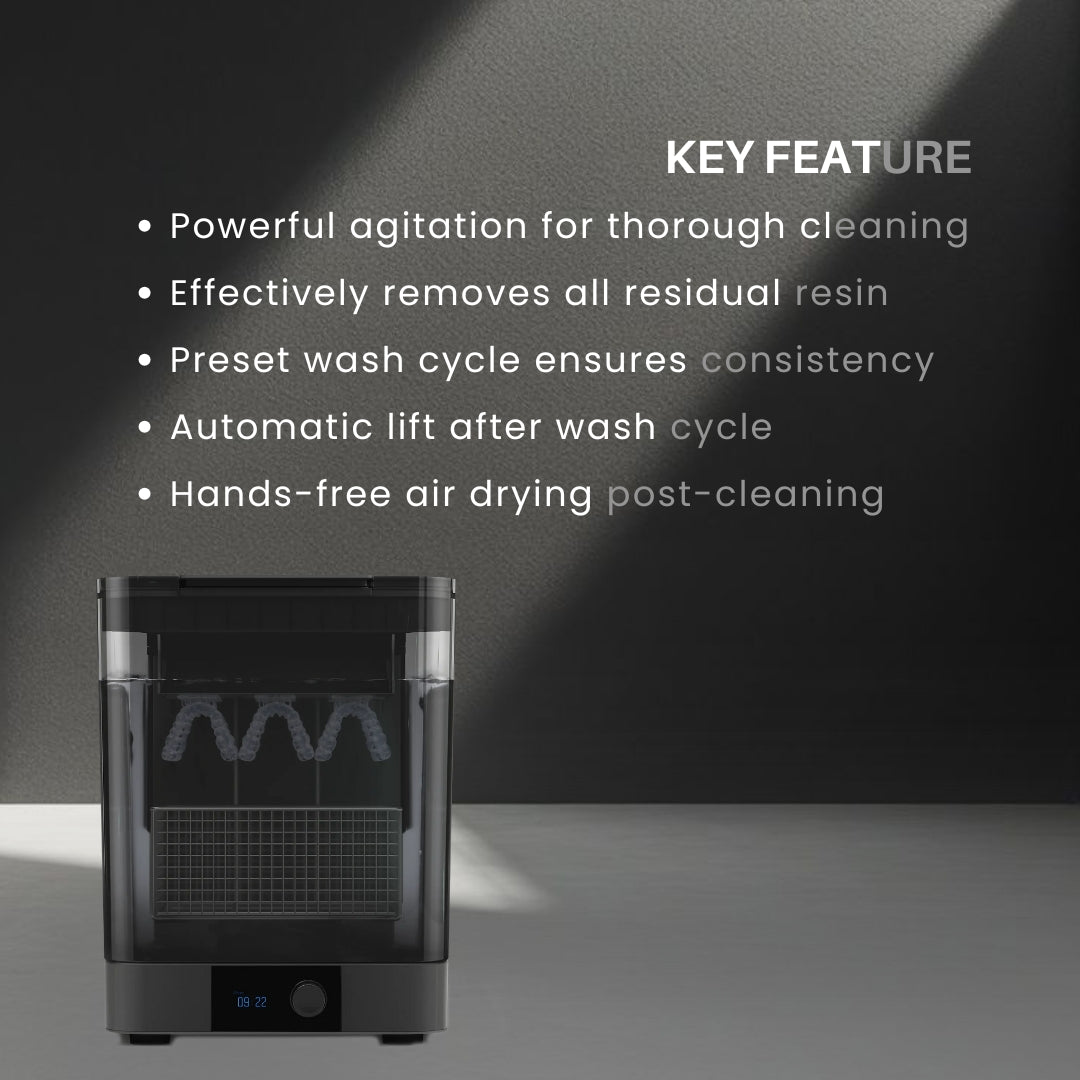

Form Wash automatically cleans printed parts thoroughly and efficiently using IPA or other compatible solvents. You can transfer parts directly from the printer to the Form Wash while still on the Build Platform, or remove them and place them in the included wash basket. An internal impeller agitates the solvent to reach every nook and cranny, ensuring a precise, hands-free clean. Once the wash cycle is complete, Form Wash automatically lifts the parts out of the solvent, allowing them to air dry with minimal effort.
Set It and Forget It
Simply set the appropriate time and let Form Wash get to work.
10 Minutes
Default wash time when using fresh isopropyl alcohol (IPA).
7 - 15 Liters
Flexible solvent volumes to wash parts of all sizes.
120 Prints
Number of prints per IPA refill with regular use. Wash 67% more parts before replacing solvent compared to the previous generation.
Technical Specifications
Form Wash 2.0
Printer Compatibility
Form 4B
Dimensions
31.5 x 29.3 x 40.5 cm
12.4 x 11.5 x 15.9 in
Height when open: 71.4 cm (28.1 in)
Weight
8.6 kg (without solvent)
18.9 lbs (without solvent)
Suggested Operating Environment
Suggested 18—28 °C
Suggested 64—82 °F
Power Requirements
90–240 V
2.0 A 50/60 Hz
50 W
