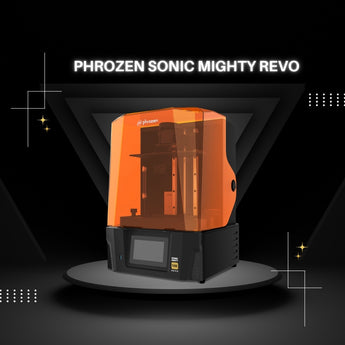

Phrozen Sonic Mighty Revo
Description

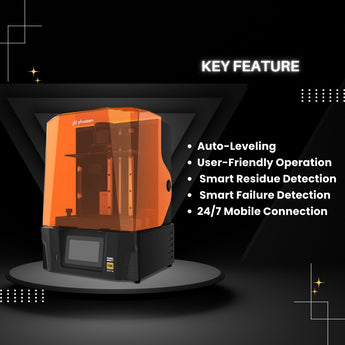

Phrozen Sonic Mighty Revo Printer
- Smart Residue Detection
- Smart Failure Detection
- Performance Enhancement
- Built-in Heater
- Auto-Leveling
- Reduce Smelly Fumes, Breathe Cleaner Air
- Air Purifier
- Built-In Exhaust Vent
- User-Friendly Operation
- 1 Minute LCD Replacement
Sonic Mighty Revo: An Extra Layer of Security for a Successful Print
Have An Extra Eye On Your Printer
Experience The New Revo Detection System Thanks To Our Patented 3-Point Piezoelctric Sensor. Integrated Seamlessly With The Phrozen GO App, It's Connected 24/7 To Your Phone For Timely Monitoring.

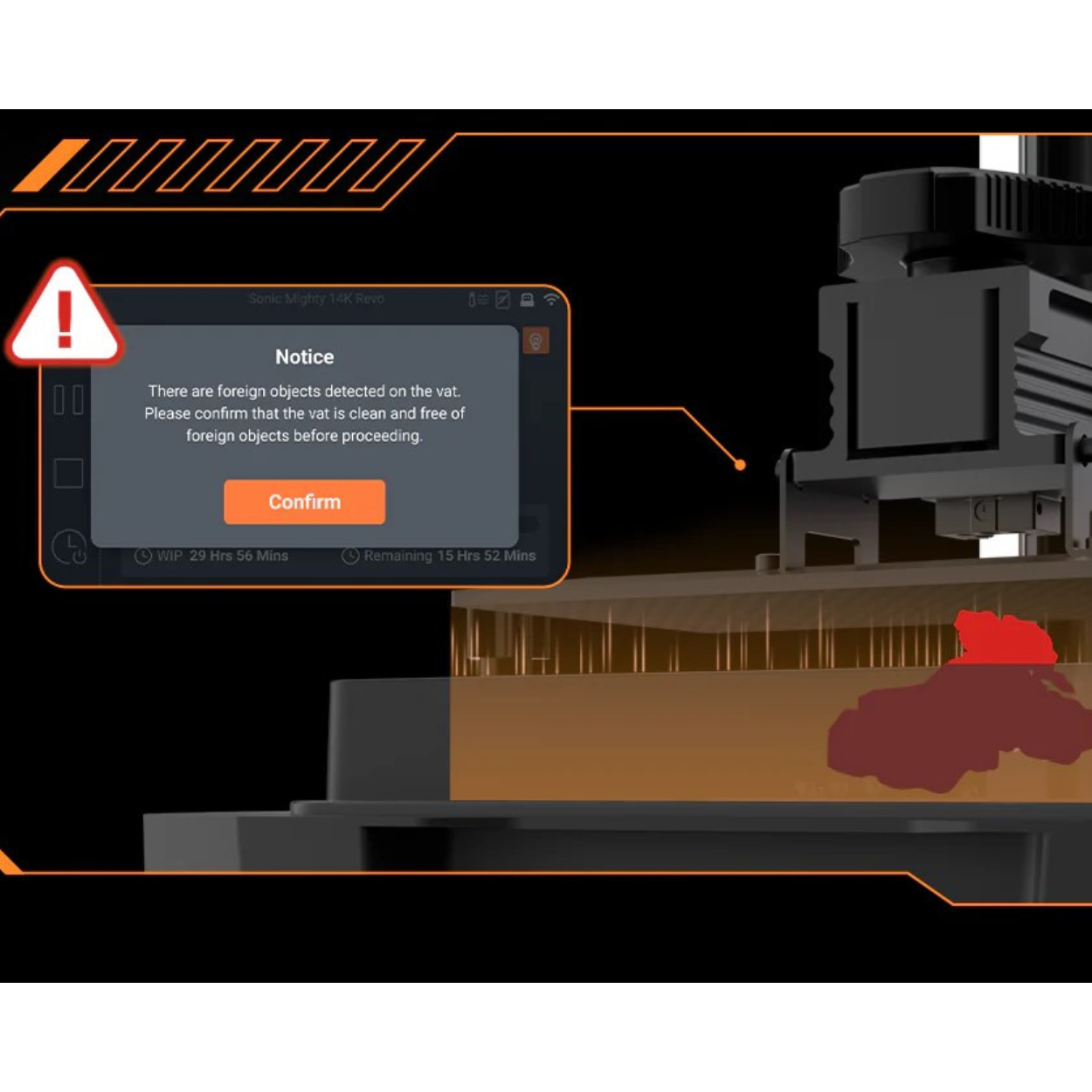

Smart Residue Detection
Avoid breaking your LCD screen due to cured particles in the vat.
The sensor will cue the printer to stop printing once it detects any foreign objects between the building plate and the release film upon its initial descent.
The sensors will detect objects ≥ 4mm.

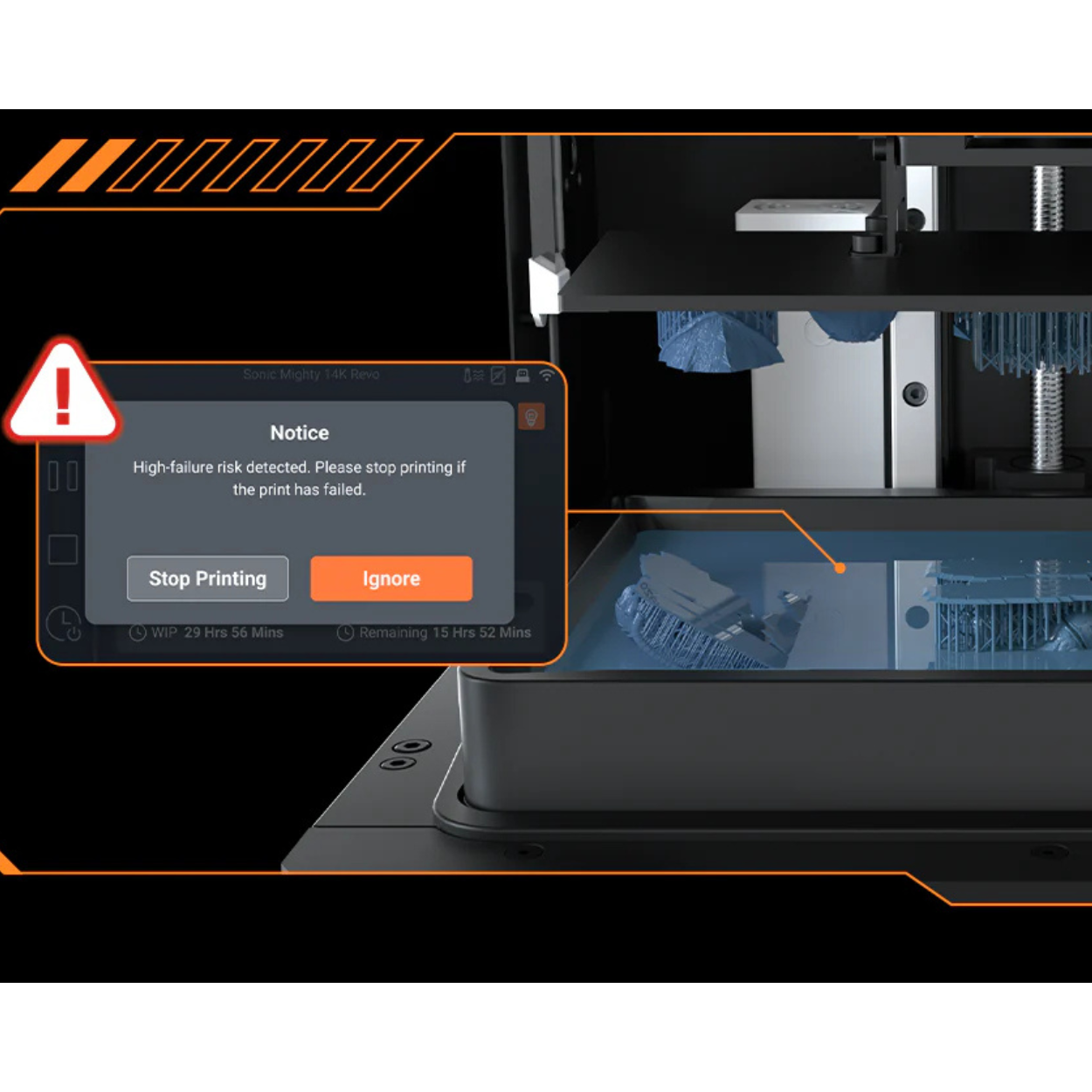

Smart Failure Detection
Get notified of possible failure early in both your printer and your phone (through the Phrozen GO App) when the sensors detect abnormalities during printing.
Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.
Performance Enhancement
Avoid the hassle that comes with trial and error of manual adjustment and environmental changesthanks to Revo’s performance enhancement features.

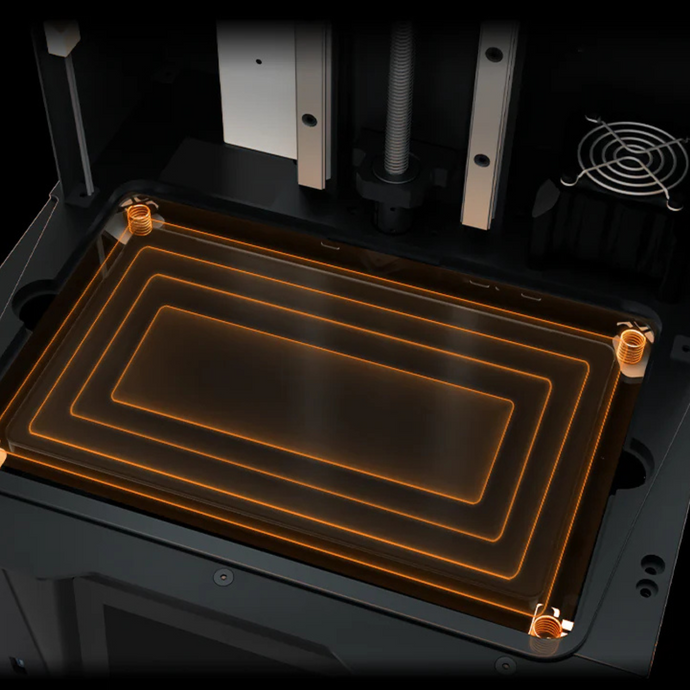

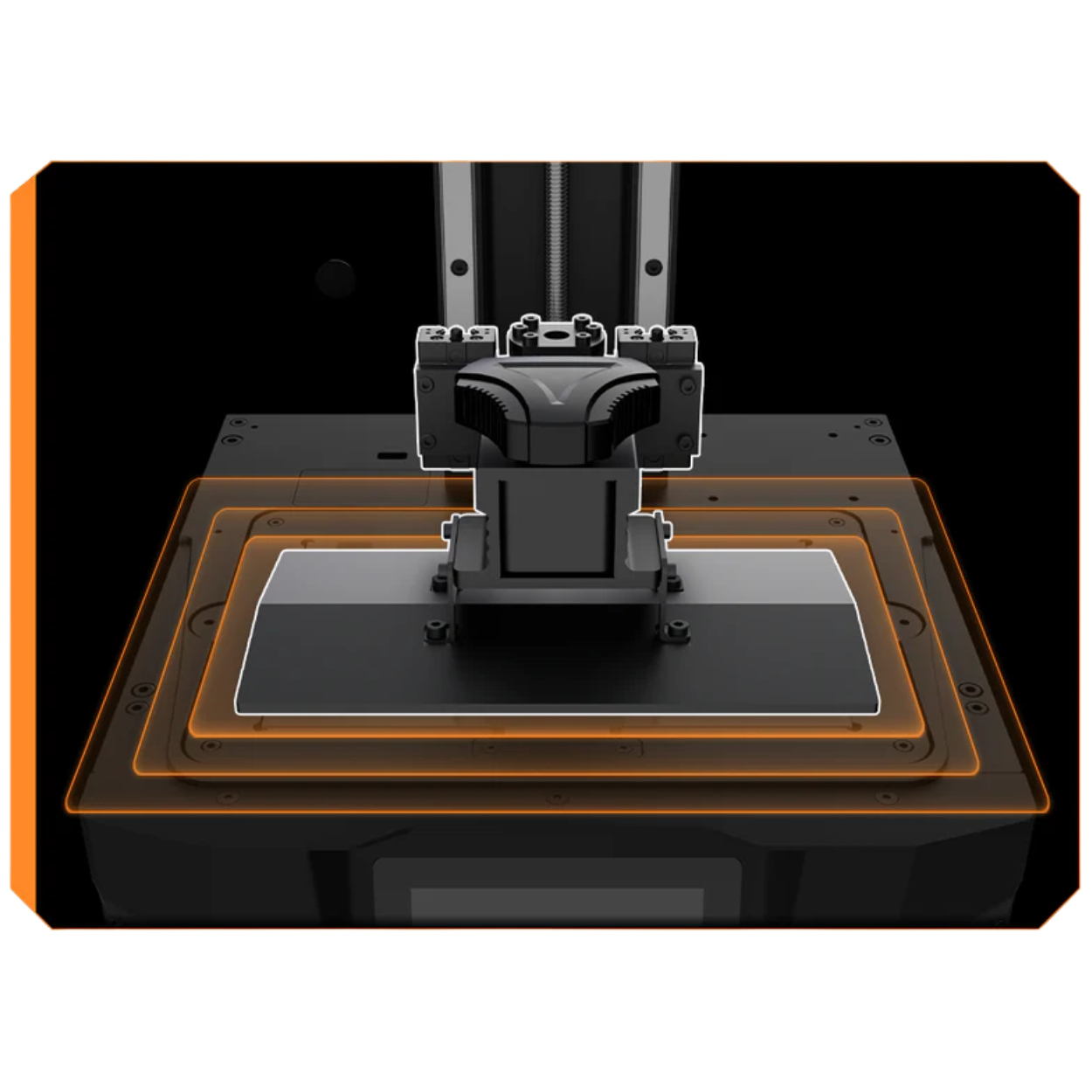

Auto-Leveling
Calibrate the Z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.
Manual adjustment may be needed if the printer is moved or frequently fails to print.
Reduce Smelly Fumes, Breathe Cleaner Air
Pungent resin odor in your living area can be annoying.Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.

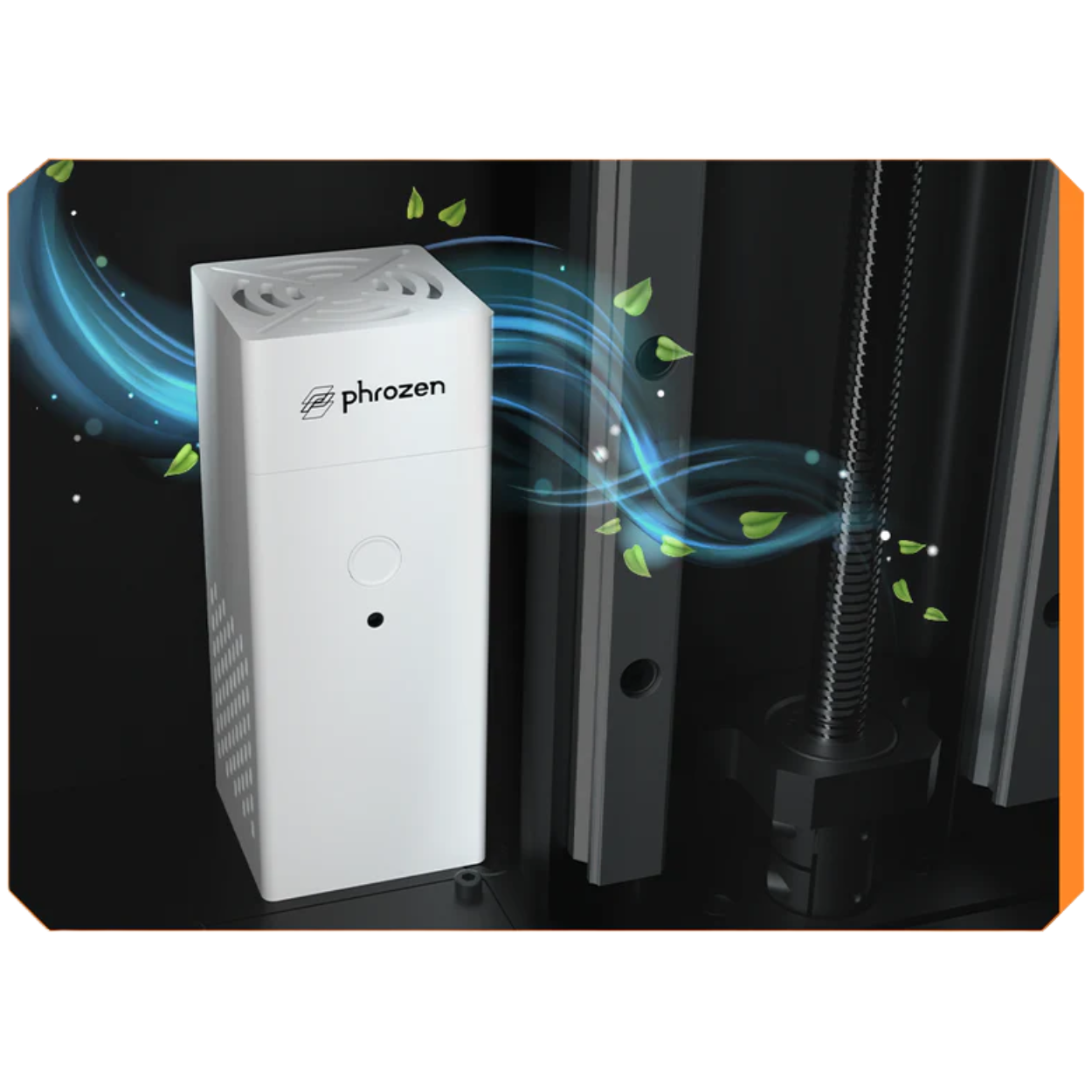

Air Purifier
Adsorb resin fumes directly within the printing enclosure, ensuring a cleaner workspace and elevating your overall printing experience.

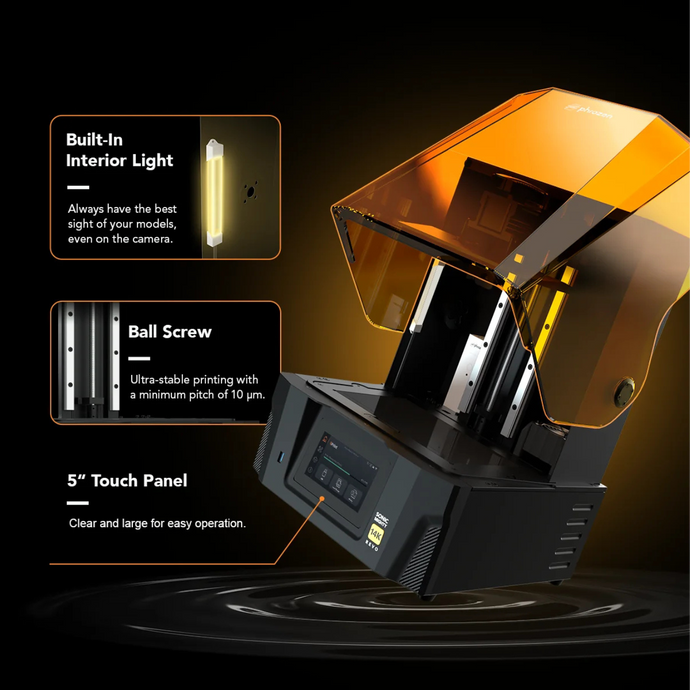

User-Friendly Operation
The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.
- System: Phrozen OS
- Operation: 5" TouchPanel
- Slicer Software: CHITUBOX V1.9.6 and above (or others)
- Compatible File Format: .CTB, .PRZ
- Connectivity: USB | Wi-Fi
- Built-in Memory: 8.0 GB
- Design: Technology Resin 3D Printer - LCD Type
- Light Source: Linear
- ProjectionLED Module
- XY Resolution: 16.8 x 24.8 µm
- Layer Thickness: 0.01-0.30 mm
- Avg. Printing Speed: 450 layer/hr
- Power Requirement: AC100–240V；50–60Hz
- System Power: Max 240 W
- Release Film: nFEP Film
- Printer Size: 35.3 x 34.5 x 51.7 cm
- Print Volume: 22.3 x 12.6 x 23.5 cm
- Printer Weight: 18 kg
